6 layer ENIG pcb
Product Detail
| Layers | 6 layers |
| Board thickness | 1.60MM |
| Material | FR4 tg170 |
| Copper thickness | 1/1/1/1/1/1 OZ(35um) |
| Surface Finish | ENIG Au Thickness 0.15um; Ni Thickness 3um |
| Min Hole(mm) | 0.15mm |
| Min Line Width(mm) | 0.15mm |
| Min Line Space(mm) | 0.15mm |
| Solder Mask | Blue |
| Legend Color | White |
| Mechanical processing | V-scoring, CNC Milling(routing) |
| Packing | Anti-static bag |
| E-test | Flying probe or Fixture |
| Acceptance standard | IPC-A-600H Class 2 |
| Application | Automotive electronics |
Product Material
As a supplier of various PCB technologies, volumes, lead time options, we have a selection of standard materials with which a large bandwidth of the variety of types of PCB can be covered and which are always available in house.
Requirements for other or for special materials can also be met in most cases, but, depending upon the exact requirements, up to about 10 working days may be needed to procure the material.
Do get in touch with us and discuss your needs with one of our sales or CAM team.
Standard materials held in stock:
|
Components |
Thickness | Tolerance |
Weave type |
|
Internal layers |
0,05mm | +/-10% |
106 |
|
Internal layers |
0.10mm | +/-10% |
2116 |
|
Internal layers |
0,13mm | +/-10% |
1504 |
|
Internal layers |
0,15mm | +/-10% |
1501 |
|
Internal layers |
0.20mm | +/-10% |
7628 |
|
Internal layers |
0,25mm | +/-10% |
2 x 1504 |
|
Internal layers |
0.30mm | +/-10% |
2 x 1501 |
|
Internal layers |
0.36mm | +/-10% |
2 x 7628 |
|
Internal layers |
0,41mm | +/-10% |
2 x 7628 |
|
Internal layers |
0,51mm | +/-10% |
3 x 7628/2116 |
|
Internal layers |
0,61mm | +/-10% |
3 x 7628 |
|
Internal layers |
0.71mm | +/-10% |
4 x 7628 |
|
Internal layers |
0,80mm | +/-10% |
4 x 7628/1080 |
|
Internal layers |
1,0mm | +/-10% |
5 x7628/2116 |
|
Internal layers |
1,2mm | +/-10% |
6 x7628/2116 |
|
Internal layers |
1,55mm | +/-10% |
8 x7628 |
|
Prepregs |
0.058mm* | Depends on layout |
106 |
|
Prepregs |
0.084mm* | Depends on layout |
1080 |
|
Prepregs |
0.112mm* | Depends on layout |
2116 |
|
Prepregs |
0.205mm* | Depends on layout |
7628 |
Cu thickness for internal layers: Standard – 18µm and 35 µm,
on request 70 µm, 105µm and 140µm
Material type: FR4
Tg: approx. 150°C, 170°C, 180°C
εr at 1 MHz: ≤5,4 (typical: 4,7) More available on request

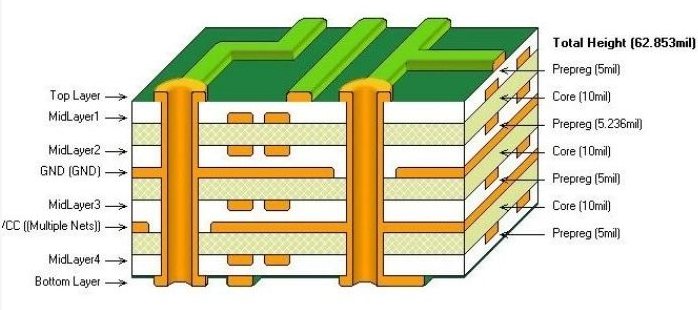

Stackup
The main 6 layer stackup configuration will be generally as below:
·Top
·Inner
·Ground
·Power
·Inner
·Bottom
